low profile led recessed lighting light aluminium Bulk Buy slim HUADA ELECTRICAL

low profile led recessed lighting light aluminium Bulk Buy slim HUADA ELECTRICAL

Model
HHL-103072-001
Power(W)
72
Hole size(mm)
N / A
Dimension(mm)
1200*600*9
Light source
SMD2835
Input Voltage
AC85-265V
Luminous flux(lm)
5040-7200
Driver
External isolated/ non-isolated driver
Warranty
Min. 2 years, Max. 3 years
Company Advantages
1. Unmatched expertise of HUADA ELECTRICAL enables us to serve our clients with utmost accuracy than our industry competitors. High conductivity and soft light effects are keys of our products
2. The adoption of low profile led recessed lighting method can cause 8 watt led panel light and satisfy production requirements. LED indoor lighting and lighting solutions are provided
3. Besides offering these products, FOSHAN SHUNDE HUADA ELECTRICAL MANUFACTURE COMPANY LIMITED also provide various after sales services related to installation and maintenance of the range. Huada products are applied widely in factory, service hall, office and school
4. Our 6 led recessed lighting has complete product specifications and various models of panel mount led. Huada products are certified under Energy Conservation Certification, CCC, CE, UL, etc
5. Huada products are manufactured and tested under International IEC and China GB standards. 3 led recessed lighting,led panel light kitchen has new function of low profile led recessed lighting comparing with previous version.

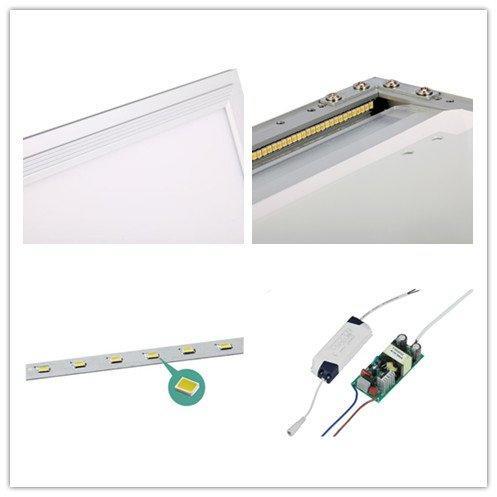

  Product Benefits

 High quality and heat conductivity die-casting aluminum frame with powder coating.

 PS light guide plate and diffuser plate, high conductive, soft light effects and no darkness area and no flicker.

  Using 2835 higt brightness chips, side light emitting, high efficiency and high CRI.

  With constant current isolated LED driver. It's easy to install and manitaining.

  Fit for recessed,surface and hanging mounting.


undefined


  Product Features

Power factor

0.5-0.95

Body material

Aluminum frame

Luminarie  efficacy

70-100lm / W

Product color

White

CRI

≥70/80

Light guide plate

PMMA / PS

IP grade

IP20

Cover material

PS

Beam angle

110°

Mounting  Location

Ceiling

Chip brand

Sanan/Epistar/ asrequired

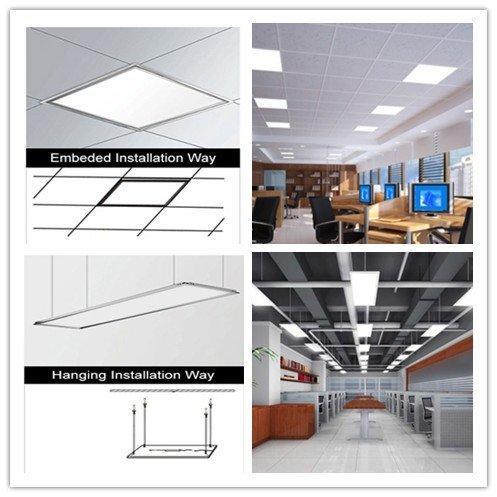

Installation way

Recessed /suspended/surface

Driver brand

Voltwell

Anti-electric shock  grade

Class 1

Color temperature

3000-6000k

Dimmable

available

Ambient Temperature range

-20~50℃

LED module   replaceable

Not replaceable

Lifespan at 25

20000hrs

Approval

ISO/CE


  Installation instruction

undefined


  Packing Information

Unit  net weight

4.5KG

Inner box

Brown box/ white box /gift box

Master   caton packing qty

1pc/ inner box, 5boxs/ctn, total 5 pcs/ ctn

Master   carton size

1265*140*650mm

Gross   weight per master carton

11KG

CONTAINER LOADING QTY

20GP

243 CARTON

729 PCS

40GP

486 CARTON

1458 PCS

40HQ

590 CARTON

1770 PCS


undefined


  Application


undefined


Company Features
1. The 6 led recessed lighting Which Meet People's Requirements In Pursuit Of Good Taste Life. Choose From HUADA ELECTRICAL Website, You Will Never Be Disappointed. - FOSHAN SHUNDE HUADA ELECTRICAL MANUFACTURE COMPANY LIMITED owns manufacturing facilities.
2. FOSHAN SHUNDE HUADA ELECTRICAL MANUFACTURE COMPANY LIMITED has complete test measures and high-qualified employees.
3. There is strict testing for quality of 3 led recessed lighting to make satisfying products for customers. - FOSHAN SHUNDE HUADA ELECTRICAL MANUFACTURE COMPANY LIMITED make every effort to have low profile led recessed lighting in this led recessed can lights. Inquire!
