HUADA ELECTRICAL supplier light diffuser panel office factory

HUADA ELECTRICAL supplier light diffuser panel office factory

HUADA ELECTRICAL supplier light diffuser panel office factory

Model
HHL-212018-001A
Power(W)
18/36/54
Hole size(mm)
N/A
Dimension(mm)
1200*100/150/200*60
Light source
SMD3030
Input Voltage
AC85-265V
Luminous flux(lm)
1260-4590
Driver
External isolated/ non-isolated driver
Warranty
Min. 2 years,Max. 3 years
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Details
HUADA pursues excellent quality and strives for perfection in every detail during the production.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of led panel light wholesale. It is of fine workmanship and good quality and is well sold in the domestic market.
Company Advantages
1. HUADA ELECTRICAL light diffuser panel is professionally developed with housing by our R&D team. They strived to produce housings with good thermal convection performance so as to improve the durability of the product.
2. The product can stand up strong disinfectants. Its specially coated metal materials make it effectively withstand disinfection environments.
3. The product is distinguished by earthquake resistance. Made of heavy-duty materials and designed with strong construction, it can resist any form of sharp vibrations.
4. [企业简称] has advanced production lines and a complete process management system to ensure that led workshop lights meets international quality standards.
5. [企业简称] has a a group of experienced and professional production personnel. Besides, we have introduced advanced foreign quality management system, and have established a quality inspection team responsible for the measurement and control work. All this provides favorable conditions for producing high-quality led workshop lights .
  Product Benefits

 Lamp body with integrated design, housig made by high quality cold-rolled steel sheet, with aluminum frame and PS reflector. Simple design, artistic and elegant.

Surface with electrostatic spraying technics, no color changing and fading after working 30000 hrs.

 Using 3030 chips with wide angle lens, straight illuminating with optical diffuser.Light source perfect match with body, bright but can not see the light, with external voltwell driver.High light effect and well-distributed, soft and no glare.

 Fit for recessed, surface and hanging mounting.

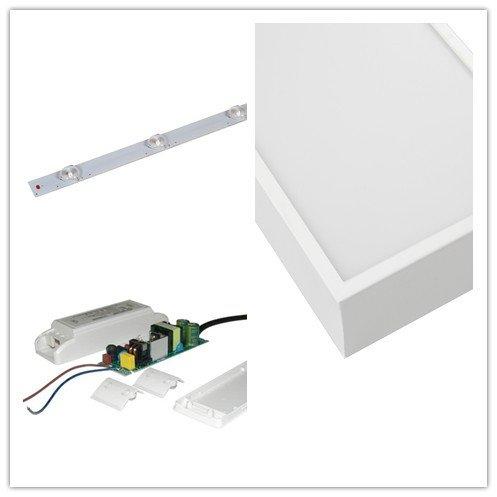

HUADA ELECTRICAL supplier light diffuser panel office factory-1


  Product Features

Power factor

0.5-0.95

Body material

Steel + Aluminum frame

Luminarie  efficacy

70-85lm/W

Product color

White/black

CRI

≥70/80

Light guide plate

N / A

IP grade

IP20

Cover material

PS

Beam angle

110°

Mounting  Location

Ceiling

Chip brand

Sanan/Epistar/as required

Installation way

Recessed /suspended /surface

Driver brand

Voltwell

Anti-electric shock  grade

Class 1

Color temperature

3000-6000K

Dimmable

available

Ambient Temperature range

-20~50℃

LED module   replaceable

Not  replaceable

Lifespan at 25

20000hrs

Approval

ISO/CE


  Installation instruction

HUADA ELECTRICAL supplier light diffuser panel office factory-2


  Packing Information

Unit  net weight

1.50KG

Inner box

Brown box/white box/gift box

Master   caton packing qty

8pcs/ctn

Master   carton size

1250*250*350mm

Gross   weight per master carton

13.8KG

CONTAINER LOADING QTY

20GP

250CARTON

2000 PCS

40GP

510CARTON

4080 PCS

40HQ

618CARTON

4944 PCS


HUADA ELECTRICAL supplier light diffuser panel office factory-3

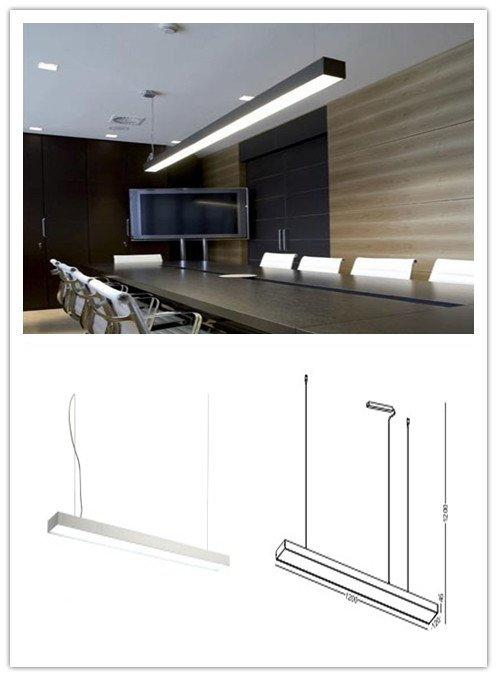

  Application


HUADA ELECTRICAL supplier light diffuser panel office factory-4


Company Features
1. As a leading led workshop lights company in China, FOSHAN SHUNDE HUADA ELECTRICAL MANUFACTURE COMPANY LIMITED takes the lead in starting the brand strategy and franchising mode.
2. Advanced equipment is basis of high product quality of surface led panel in FOSHAN SHUNDE HUADA ELECTRICAL MANUFACTURE COMPANY LIMITED.
3. It is our mission to enhance customer satisfaction. We will achieve this task by improving product quality, offering professional customer service, and offering clients with targeted products. We are considering how we can reduce and handle the waste during our own operations. We have a lot of opportunities to reduce waste, for example by rethinking the way we pack our goods for shipment and distribution and by also following a waste segregation system at our own offices. We are working hard to be the first choice of customers. Through the effective integration of resources, we constantly improve the service system that features a higher level of professionalism. Our company recognizes increasingly serious environmental issues as a topmost priority. So we integrate circular thinking into product and process design to facilitate sustainable resources usage and foster profitable circular business.
